贷款用途与筒介：Purpose and introduction

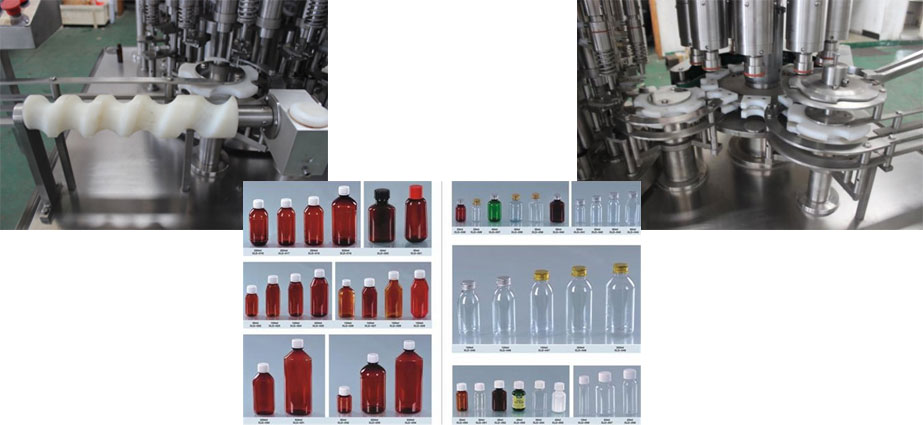

机器可用到于对30-500ML类型破璃瓶、pp可塑料饮料瓶的分装封膜。利用往来账户联系式活塞式实现分装，磁感应自激振荡送盖，能轧盖(材料式)或旋盖(pp可塑料盖)封膜，能和前后的的生產流程机械相联组成部分生產线，不仅如此能选择百级层流罩。This machine is suitable for the filling and sealing of 30-500ml series glass bottles and plastic bottles. The reciprocating between piston filling, electromagnetic oscillation send cover, cover (metal) can be rolled or screw cap (plastic cap) sealing. Can produce and the produce of the process equipment before and after connecting line. In addition, the laminar flow hood is available for selection.

优势特点：characteristic

装量更准确，杜尽漏滴。缺瓶不灌装线。 变频柜变速。 分手后显示信息计算功较。 空机均按GMP规定设计方案。The filling amount is accurate, as Du drip. Lack of bottle does not fill. Frequency control of motor speed. Active display count. The machine according to the GMP request design.

技术应用基本参数/technical parameters：

型号 model	NQGX30-500
适宜规格型号Cutting dimension	30-500ml
生厂力量Production capacity	80-200瓶/分（罐/分）80-200 bottles/min (cans/min)
灌装生产线误差 Filling accuracy	≤±1%
外接电源 Power	380V/50Hz
旋（轧）盖率Spin (rolling) cover rate	≥99%
功率power	3.0 kw
机戒毛重 Machine weight	1500 kg
外形尺寸 boundary dimension	3000*1100*1700mm
