使用与介简/Purpose and introduction：

NQGF型西林瓶粉针洗烘灌装轧盖标贴纸联调线 由QCL全系类卧式超音波波洗瓶机、AQMR随道式暧风循环法法过滤除菌烘烤箱、NQFGX全系类智能螺母粉剂灌装机、NQ-50轧盖机、NQWTB-120标贴纸空气能机组成，也可单机游戏运行。适当于7-25ml规格型号的西林瓶粉针的生产加工。能完整喷淋头加水、超音波波粗洗、瓶内壁水擦拭、瓶内壁连继二级循环法法水擦拭、多次吹气、多次生鲜水擦拭、连继二级吹气、瓶内壁吹气、的清洗、发动机预热、烘干处理过滤除菌去热原、散热、灌装、加塞、轧盖、标贴纸等二十几个道工艺流程。NLGF schering bottles booster injection wash baked repackaging rolling cover labeling line consists of QCL series vertical ultrasonic bottle washer, ASMR tunnel type hot air circulation oven. NFFGX series CNC screw powder filling machine, NF-50 rolling machine, NFWTB-120 labeling machine, and also can be used stand-alone. Suitable for 7 to 25 ml specification schering bottles of water production. Can finish the spray water injection, ultrasonic thick bottle washing, the outer wall of water flushing, bottle wall continuous secondary circulating water flushing, a blowing, a fresh water rinse, two consecutive bottle blowing, blowing the outer wall, preheating and drying sterilization to pyrogen, cooling, packaging, gasser, cover, labeling and so on more than 20 procedures.

特性/characteristic：

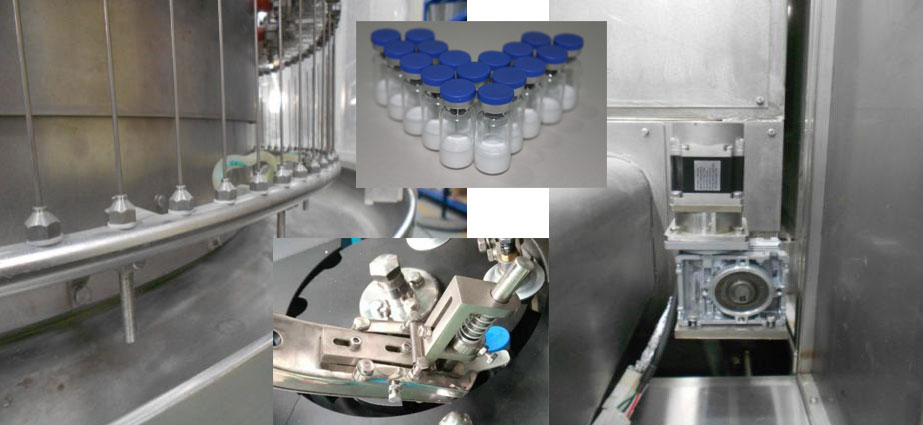

◆洗瓶机选择厂家手夹瓶，实用几种规格尺寸的西林瓶；Bottle washer adopts manipulator clamp bottle, is suitable for a variety of specifications of schering bottles;◆洗瓶按照雾水喷针往复运动追踪定位复制到途径，冲洗目的好，省资源。并具有针架防跳动平衡装置，加快喷针复制到空瓶的确切度，缩减断针的问题发生；Reciprocating mixer washing bottle with water spray needle track insert way, cleaning effect is good, save energy. And is equipped with needle shake device, improve the accuracy of injection needle inserted into the bottle, reduce breakage phenomenon;◆洗瓶这个水汽滤油器、喷针全自立分手，逃避了交叉点水污染，符合符合要求GMP规范化符合要求；Mixer washing bottle the water pipe, injection needles completely separate, to avoid the cross contamination, in line with the GMP requirements;◆洗瓶机进瓶挤出机挤出机螺杆前装个缓存块，有护理挤出机挤出机螺杆，极大减少碎瓶用途；Pieces into the bottle inside the screw before adding buffer block, protect the screw, reduce broken bottle;◆洗瓶机出瓶选取全局出口同样带，链接拨瓶块输送机西林瓶，使用增强靠普；Pieces out of the bottle inside the whole import synchronous belt, the connection dial the bottle conveying schering bottles, operation is stable and reliable;◆真空烘箱采用了制热反复电加热，室内温度更加均匀，低碳；Oven adopts hot air circulation heating, temperature uniformity, energy saving;◆干燥箱可设防时不时跳闸呵护功能键。运转稳定；Mixer oven has suddenly loses power protection function. Run security;◆烘干箱可配循环法散热安装，不自然损耗室内排风量，减轻室内的气体压力不平衡量的危险因素降低温度的成效好；Mixer oven can match circulating water cooling device, not loss room air volume, reduce the risk of differential pressure imbalance in room cooling effect is good.◆真空烘烤箱可配风压力差智能静态平衡点调准系统的提高次卧和真空烘烤箱的风压力差不静态平衡点诱发的环境温度段位移，罐装间洗烘间环境温度升中等职业一类型的问题；Mixer automatic oven can match differential pressure balance control system to reduce the room and high temperature oven pressure difference caused by the imbalance of period of migration, filling between wash between baking temperature and so on a series of problems;◆真空烘箱设置有DOP论文的检测模块(例如静压、空气流速、尘烟阿尔法粒子论文的检测口)；Mixer oven with DOP test interface (including wind pressure, wind speed, dust particle detection);◆烘烤箱降温段可带上线高压蒸汽灭菌能力(FDA特选)；Mixer oven cooling segment with the function of sterilization (FDA selected);◆恒温干燥箱网带可带高周波蔓延到CIP线下刷洗系統；Type mixer oven mesh belt with ultrasound scanning CIP online cleaning system;◆烘干箱内腔室可采取全方向、多斜度高压低压水洗；In pieces inside the oven chamber can be all-round, multi-angle high-pressure water flushing;◆灌装机主要采用国.际更领先的规划核心价值，更具高速收费站度，且分瓶明确，调整年纪件非常方便；Mixer racking machine adopts the most advanced design concept, high speed, and bottles of accurate, replacement of a convenient;◆分开包装机应用交谈伺服主轴电机主轴电机控制器软件分开包装罗杆自动旋转，装量精确度高；Mixer racking machine adopts ac servo motor drive the repackaging screw rotation, the load accurately;◆全自动灌装机机用装量的调准随时在触摸显示屏屏上实现目标；Mixer packer adopts the load adjustment directly on a touch screen;◆预包装机可选择配百级无限循环式层流罩；Mixer packer optional circulating laminar flow hood best level;◆全自动灌装机机无瓶中断全自动灌装机，无瓶没有塞模块。Racking machine without stop packing bottle, no bottle no stoppered function.◆整线所采用PLC总有效操控、直流变频空调器、触感屏有效操控技巧，执行保持稳定耐用。触感屏可凸显各单机版的执行的情形，各有效操控点的通水压力、大气压力、静压、温等凸显，各转换开关的情形和设备发动机问题凸显，设备发动机问题自我认识诊断报告和设备发动机问题讲解及查出方案。使一整个产量历程高达自动化机械化有效操控，联线具备有自我控制动态平衡器，有保障产量均衡化耐用。The whole line adopts PLC control, inverter, touch screen control technology, stable and reliable running. Touch screen can display the running state of each units, each control point of the water pressure, air pressure, air pressure, temperature, etc, according to the switch state and fault display, fault self-diagnosis and fault analysis and elimination method. Make the whole production process automation control, on-line has the automatic balancing device, ensure production equilibrium is reliable.会根据买家的需，还可供选购：According to the needs of customers, but also available for selection:◆欧姆龙、施耐德开关、西门子、台达等知名品牌有效控制软件；Pieces of Siemens, schneider, mitsubishi, Taiwan brands such as control system;◆水、气压强、水的温度及超声清洗波抗压强度、颗粒激光束、风速等级高清在线监测、报警器、记下、彩印系統；Pieces of water, gas pressure, water temperature and the intensity of ultrasonic, dust particles, wind speed on-line detection, alarm, record and print system;◆ORABS、CRABS、无茵屏蔽器体统。ORABS, CRABS, aseptic isolator system.

技术水平参数设置：/technical parameters

类型 model

研发的能力production capacity

洗瓶合格达标率Washing bottle percent of pass

洗瓶破埙率Washing bottle breakage

过滤除菌热度sterilizing temperature

散装精度The repackaging of error

加塞适合率Gasser percent of pass

气氛层流无尘室度Laminar air cleanliness

抽真空抽速Vacuum pumping speed

电容（电容器）量 capacitance

24v电源power supply

总电池寿命Total transmission energy

外表大小boundary dimension

7-25ML国家行业标准西林瓶 7-25ML GBvial

300瓶pcs/分min ～600瓶pcs/分min

≥99%

≤0.1%

300℃-350℃

≤±3%(0.1-10h)

≥99%

100级100c

25m3/H(外配)100cbm/H ～50m3/H(外配)100cbm/H

96kw～235.5kw

380v,50HZ

约 8200KG

约 2000×1750×2370mm
