应用与概况/Brief Introduction：

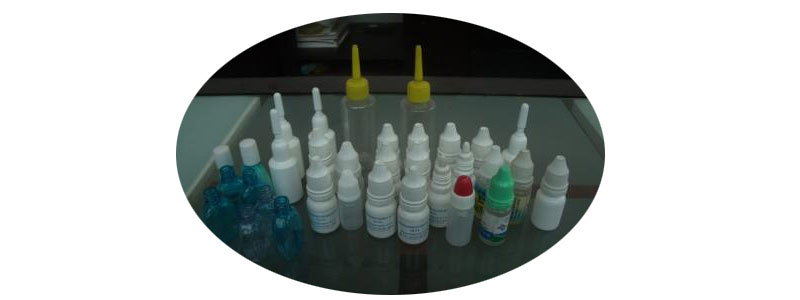

远程服务器支持于2-30ML各式面料的扇形扁形塑料材质或有机玻璃制瓶的眼药液罐装、智能电子烟油等小的用药量罐装.远程服务器由高明确气缸机购测量范围机购展示测量范围等分盘确定上塞上盖;快进程气缸机购齿轮变速箱展示旋盖头的上升下降;恒扭距旋盖;肠蠕动泵计量检定校准罐装;手触屏有效控制.无瓶不罐装,没有内塞,外盖.具确定明确,齿轮变速箱稳定,保护好瓶子,计量检定校准准.的操作十分简单等显著优点。This machine is mainly available to fill eye-drop into various round and flat plastic or glass bottles with the range from 2--30ml.High precision cam provides a regular plate to position, cork and cap; accelerating cam makes capping heads going up and down ;constant turning arm screws caps; creepage pump measures filling volume; and touch screen controls all action. No bottle no filling and no capping. If there is no plug in the bottle, it must not cap until having been detected plug in the bottle. The machine enjoys high position accuracy, stable driving, precise dosage, and simple operation and also protects bottle caps.

特征/Characteristic：

◆微台式电脑设制、装量正确、实操不方便。Man-machine dialogue system setting,visual convenient operation ,accurate filling level。◆机箱速比可开展有级变频式调节。the mainframe running speed is stepless frequency conversion.◆工作量自动式按量操纵。the product quantity can be controlled. ◆好几种系统故障表示职能(如低标准气压。无分装、无内塞等)。Multi-failure prompt function (such as infrabar, no filling and no inserting plug etc).    ◆自然停止时的功能，对某个道轨现身不断无灌装线、无内塞情况报告可自然停止时。Automatic stop function, if there is no filling, no inner plug in any rail, it may stop automatically.

技艺指标/Main Technical Parameters：

符合型号Filling Volume	2-30ml
种植本事Productivity	30-60瓶/分  70-100瓶/分 30-60bottles/min  70-100bottles/min
装灌高精准度Filling Precision	≤±1%
交流电源 Power Supply	380V/50Hz
旋（轧）盖率Capping Rate:	≥99%
自功上塞率Stoppering rate	≥99%
气动阀门Air Supply	1.3 m3/h    0.4-0.8Mpa
耗油率 Power	2.0 kw
机气净含量Weight	550 kg
形态尽寸Dimension	1800*1000*1500mm
