作用与概述/ Brief Introduction：

本制作线由全电脑自动理瓶机、滚简式洗瓶机、无菌干燥的机、眼药粉包装设备旋盖机、开式标贴纸工作机组成，可来完成理瓶、水、气的家电清洗、晒干及臭氧杀菌酒精消毒、包装设备、加塞、旋盖、标贴纸等工作，注意广泛用于眼药粉试述他小分子量硫酸铜溶液的联线制作，也可单机游戏独立自主安全使用。是符合需要GMP需要。This production line consist of  Automatic Bottle Unscrambler,  Bottle Washing Machine, Tunnel Type Sterilization Drier, eyedrop filling machine, Vertical Labeling machine, can complete bottle sorting, water,and gas cleaning, drying and ozone disinfection, filling, plugging, capping, labeling, mainly used in eyedrops and other small doses of solution, also can be used single independently.　 Meet the GMP requirement.

的特点/Characteristic：

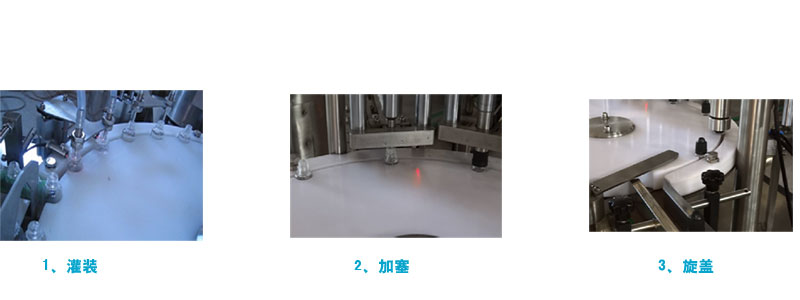

远程服务器组规划机构合适，运动稳固、包装定位精度更高，具国内的携手同市场最先进标准单位。完成符合国家GMP标准单位。     眼灵药罐装生产线旋盖机却是我单位的第三点代成品，人与机器操作界面管理，蠕动消化泵罐装生产线，由重力作用吸机诫手替代标准气缸有效的打塞，保持了稳定可靠性和通过率。应用恒发动机功率旋盖，有无瓶不罐装生产线、无塞不上盖，无瓶无塞可电脑自动停电的特点。    It with reasonable structure, higher precision in filling, reaching the advanced level in domestic same business. Meet with requirement of GMP standard completely.eyedrop filling capping machine is a third generation product, human-machine interface operation, filling by peristaltic pump, replace air cylinder with vacuum drived manipulator for plugging, aquire higherstability and percent of pass. Constant torquecap screwing. No bottle no filling, no plug no capping and automatically stop if cap and plug is under-supply.

技术工艺基本参数/technical parameters：

采用的规格/Bottle size	10-20ml
制造力/Capacity	40-60瓶/分  70-120瓶/分 40-60/  70-120 bottles/min
供水重压/ Hydraulic Pressure Mpa	0.3Mpa
用水的量 /water consumption	0.5 m3/h
净化后的缩小环境水压 /Clean compressed air pressure	0.6-0.8Mpa
是否干净缩短空气的储电量/Clean compressed air consumption	300 L/min
主机电源/Voltage	380V/50Hz
瓦数/Power	5.5 kw
研发线总长/Dimension	11000*1500*1900mm
