作用与介简：/Purpose and introduction

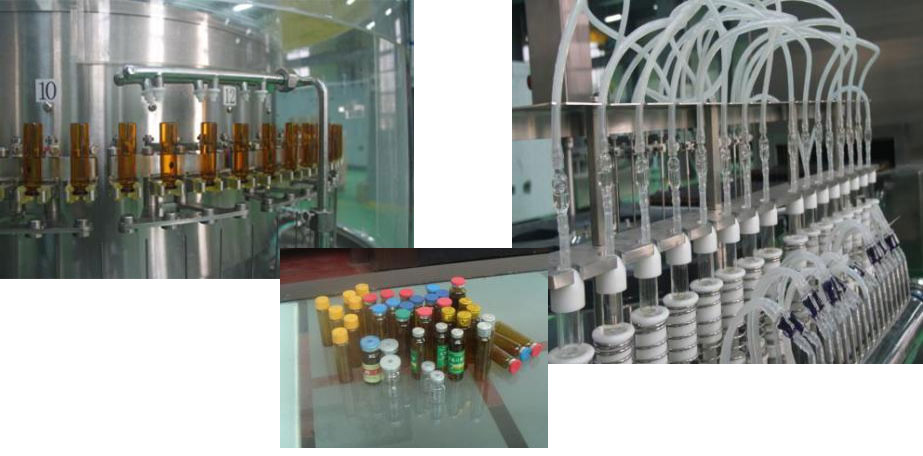

服用液洗烘灌轧协作线由垂直多普勒彩超波洗瓶机、隧道施工式暖风 嵌套循环杀菌烤箱、服用液分装轧盖机等組成，满足于 5-30ml 等区别规 格服用液瓶的出产。可已完成对中药饮片出产中安瓿瓶淋水、多普勒彩超波的清洗、冲水、充 气、烘干阶段杀菌、蒸发、分装、轧盖等加工过程步奏的协作正常运行。Oral liquid washing drying filling and rolling line by the vertical ultrasonic bottle-washing machine, tunnel sterilization oven hot wind cycle, oral liquid filling and other components of the rolling machine, suitable for 5-30 ml different gauge, etc Oral liquid bottle production. Can be done for ampoule bottle pour water in drug production, ultrasonic cleaning, flushing, filling gas, drying sterilization, cooling, filling and rolling cover joint operation of the process steps.

的特点:/characteristic

◆洗瓶机分为机械设备制造手夹瓶，适于好几种品种的塑料瓶；Bottle washer adopts manipulator clamp bottle, is suitable for a variety of specifications of the bottle;◆洗瓶主要包括雾气喷针回转定位跟踪复制行为，清晰治疗见效快，下降能源系统。并设置针架防会抖安装，增加喷针复制瓶盖的明确度，下降断针状况时有发生；Reciprocating mixer washing bottle with water spray needle track insert way, cleaning effect is good, save energy. And is equipped with needle shake device, improve the accuracy of injection needle inserted into the bottle, reduce breakage phenomenon;◆洗瓶整块水蒸汽内部管道、喷针截然独立空间单独，不要了对称废弃物，复合GMP规范性的标准；Mixer washing bottle the water pipe, injection needles completely separate, to avoid the cross contamination, in line with the GMP requirements;◆洗瓶机进瓶螺丝杆前加装有抗震块，有保护好螺丝杆，缩短碎瓶用途Pieces into the bottle inside the screw before adding buffer block, protect the screw, reduce broken bottles◆洗瓶机出瓶用于产品进品同步软件带，对接拨块输送带补血口服液液，使用稳定的稳定In pieces out of the bottle inside the whole import synchronous belt, the connection piece of conveying liquid, stable and reliable running◆烘烤箱用于红外线烧水管，装饰管烧水管双层玻璃烧水室内温度饱满性好；Oven using infrared heating tube, stainless steel heating tube double heating temperature uniformity is good;◆装灌轧盖机可以选择配陶瓷制品泵、不锈钢材质的泵；In pieces filling rolling machine optional ceramic pump, stainless steel pump;◆包装无瓶止灌，无瓶不轧盖效果。Pieces filling without bottle filling, no bottle no rolling function.◆整线采用了PLC总掌控、变頻器、接触屏掌控技术设备，开机正常运作比较稳定耐用。接触屏可表现各单机版的开机正常运作程序，各掌控点的水位、大气压、风压气压、温度因素等表现，各按钮开关程序和错误表现，错误个人珍断和错误进行分析及查出方式方法。使整一个生孩子的时候提升自动式化掌控，联线含有三机测控平横控制系统， 保障生孩子均衡化耐用。The whole line adopts PLC control, inverter, touch screen control technology, stable and reliable running. Touch screen can display the running state of each units, each control point of the water pressure, air pressure, air pressure, temperature, etc, according to the switch state and fault display, fault self-diagnosis and fault analysis and elimination method. The whole production process to achieve automatic control, on-line has the compressors control balancing device, ensure production is balanced.要根据客人的须要，还可供配搭：According to the needs of customers, but also available for selection:◆西门子模式、斯耐德、三菱PLC、台达等加盟品牌把握模式；Pieces of Siemens, schneider, mitsubishi, Taiwan brands such as control system;◆水、气水压、油温及高周波波抗弯强度、污物激光束、风力在线视频测量、短信报警、见证、直接打印系统。Pieces of water, gas pressure, water temperature and the intensity of ultrasonic, dust particles, wind speed on-line detection, alarm, record and print system.◆ORABS、CRABS、无菌操作屏蔽器软件系统。Mixer ORABS, CRABS, aseptic isolator system.

技术设备技术指标：technical parameters

支持尺寸规格Cutting   dimension(ml)	5-25
生产能力production capacity(pcs/min)	350
分装误差Filling accuracy(%)	≤ ± 2.5
灌装线头数Fillingheads	16
轧盖头数Number of rolling   curtain	单刀20头
轧盖符合标准率Rolling cover   percent of pass(%)	≥ 99
总重量total weight(kg)	7500
外形尺寸boundary dimension(mm)	9920 × 2003 × 2150
